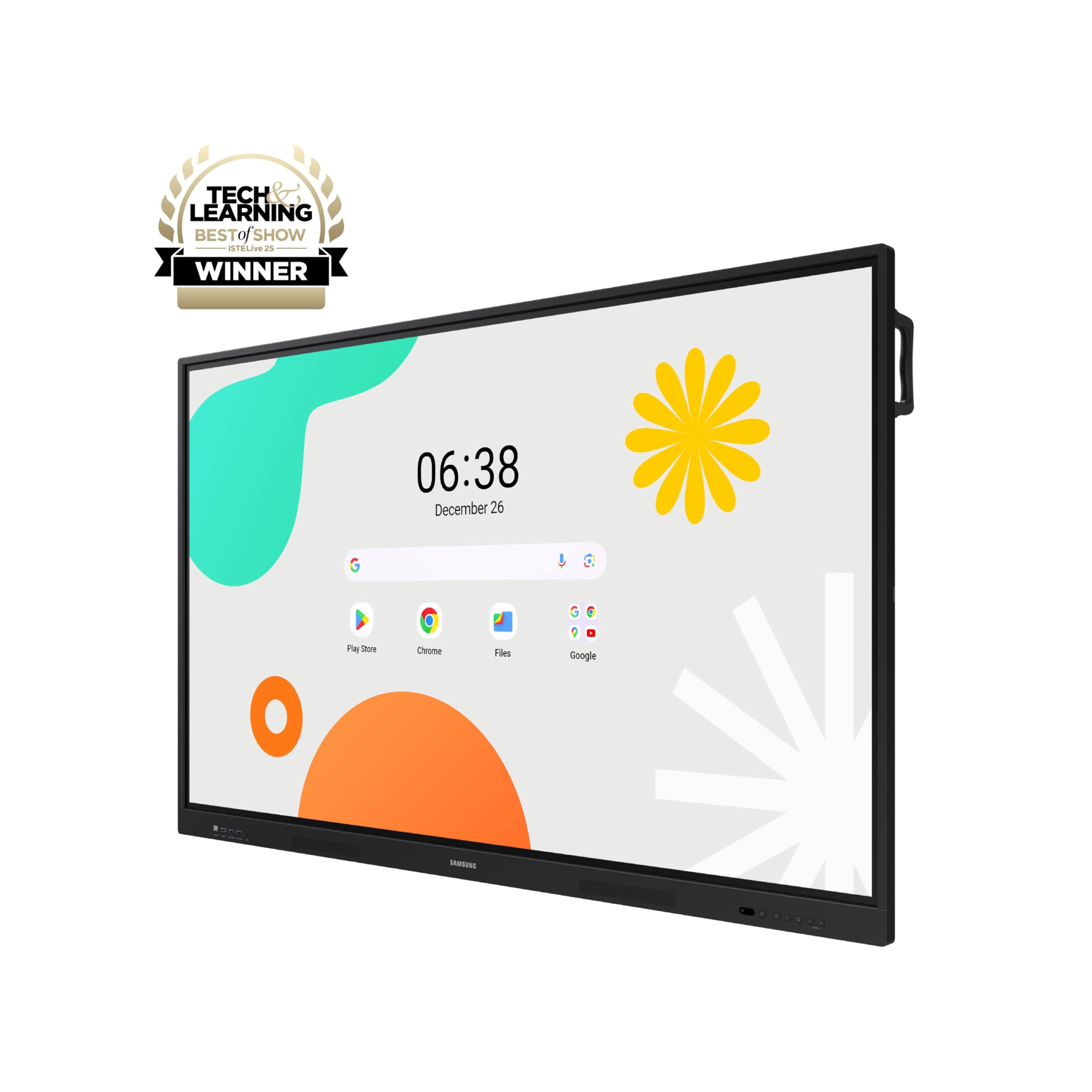

Samsung 86" WAF 4K Interactive Whiteboard, EDLA Certified, LH86WAFWLGCXZA

The Samsung 86" WAF Interactive Whiteboard turns a classroom or boardroom into a shared workspace. The 86-inch 4K touchscreen reads up to 40 points of contact at once, and EDLA certification means Google Workspace, Chrome and the Play Store run on the screen itself with no computer attached.

86-inch 4K UHD IPS touchscreen

At 86 inches, 4K resolution keeps normal text readable from the back of a classroom or the far end of a boardroom. The IPS panel holds color and contrast at 178 degrees in both directions, so people sitting at the sides see the same picture as the person standing at the board. A 25% haze finish cuts reflections from overhead lighting.

• 3840 x 2160 (4K UHD) resolution
• IPS panel, 178 / 178 degree viewing angle
• 400 nits brightness
• 1200:1 contrast, 4000:1 dynamic
• 8ms response, 60Hz
• 72% color gamut, 25% haze anti-glare finish
• Rated for 12 hours a day, 7 days a week

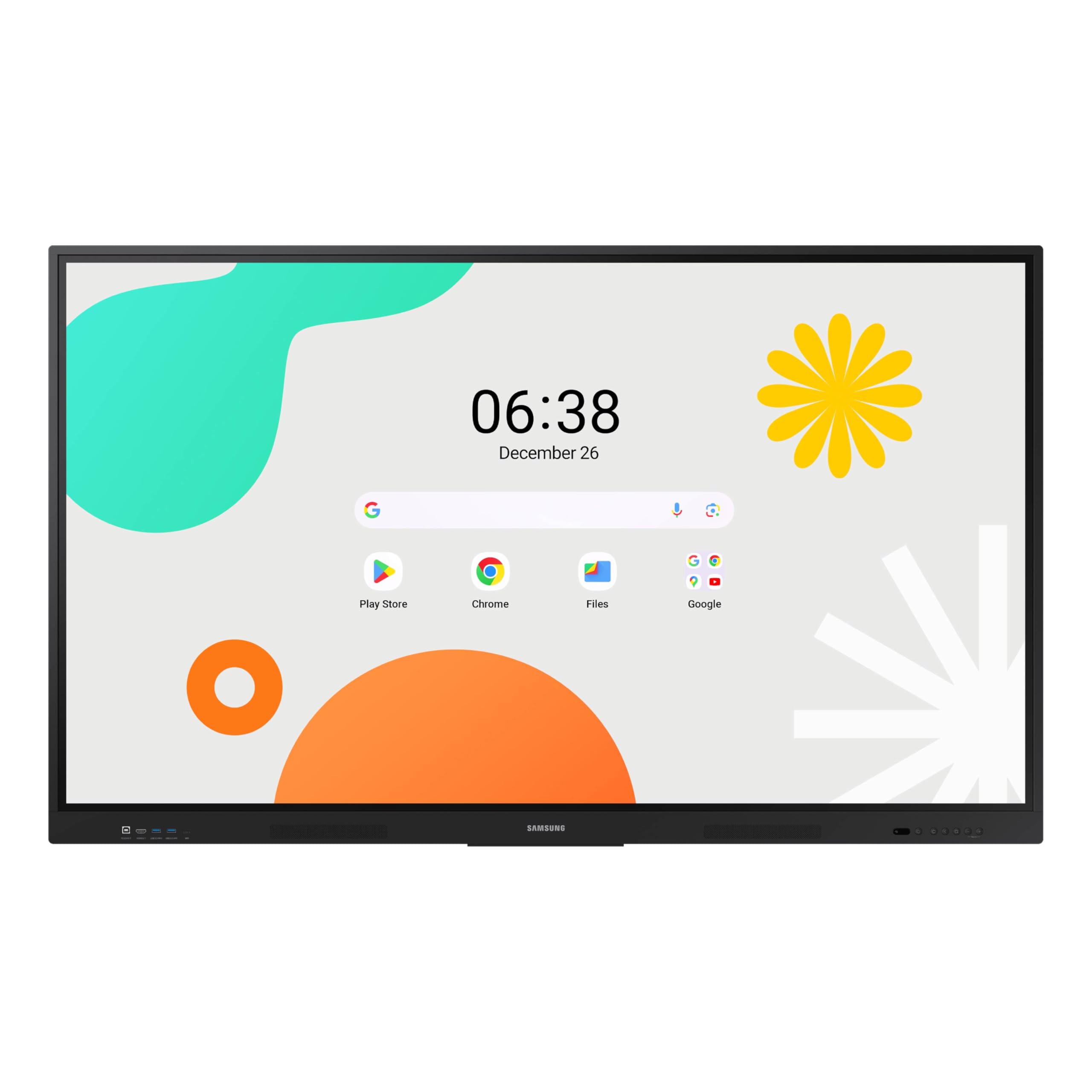

EDLA certified, running Android 14

EDLA is Google's certification for interactive displays. It means Google Workspace, Google Classroom, Chrome, YouTube and the Play Store are licensed to run natively on this screen. Staff sign in with the accounts they already use. The home screen is customizable, so a school can put the apps teachers actually use front and center.

40-point touch, dual pen, and four note zones

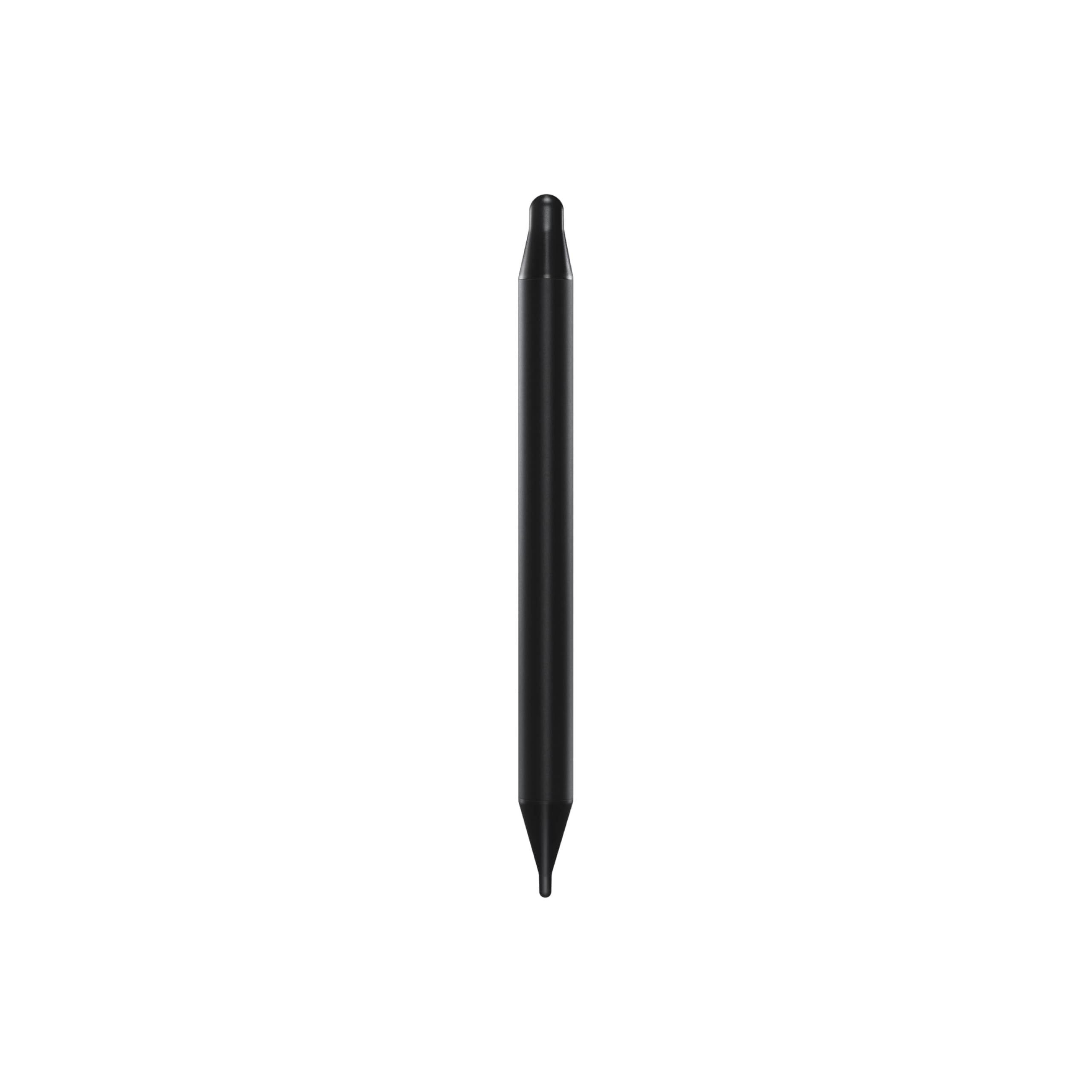

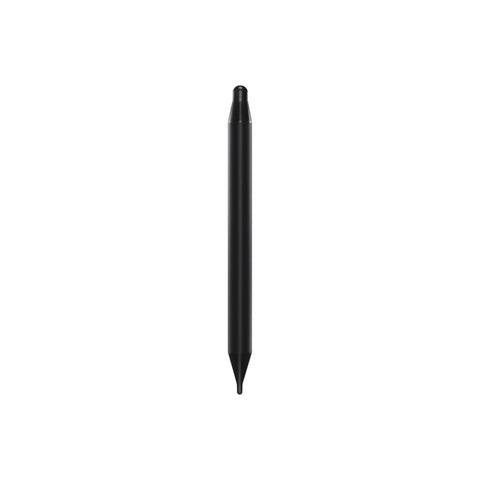

Infrared touch tracks up to 40 contact points at the same time. The dual pen has a double-sided nib, so one person switches between two colors without picking up a second pen.

Split Note Mode gives up to four independent note zones on one page, so four groups can work side by side on the same screen. Annotation is always available from a single button press, over anything on screen.

Wireless sharing for up to nine devices

Smart wireless sharing supports screen mirroring from up to nine devices. Students and staff cast from phones, tablets and laptops with no cable and no adapter, and the teacher switches between them.

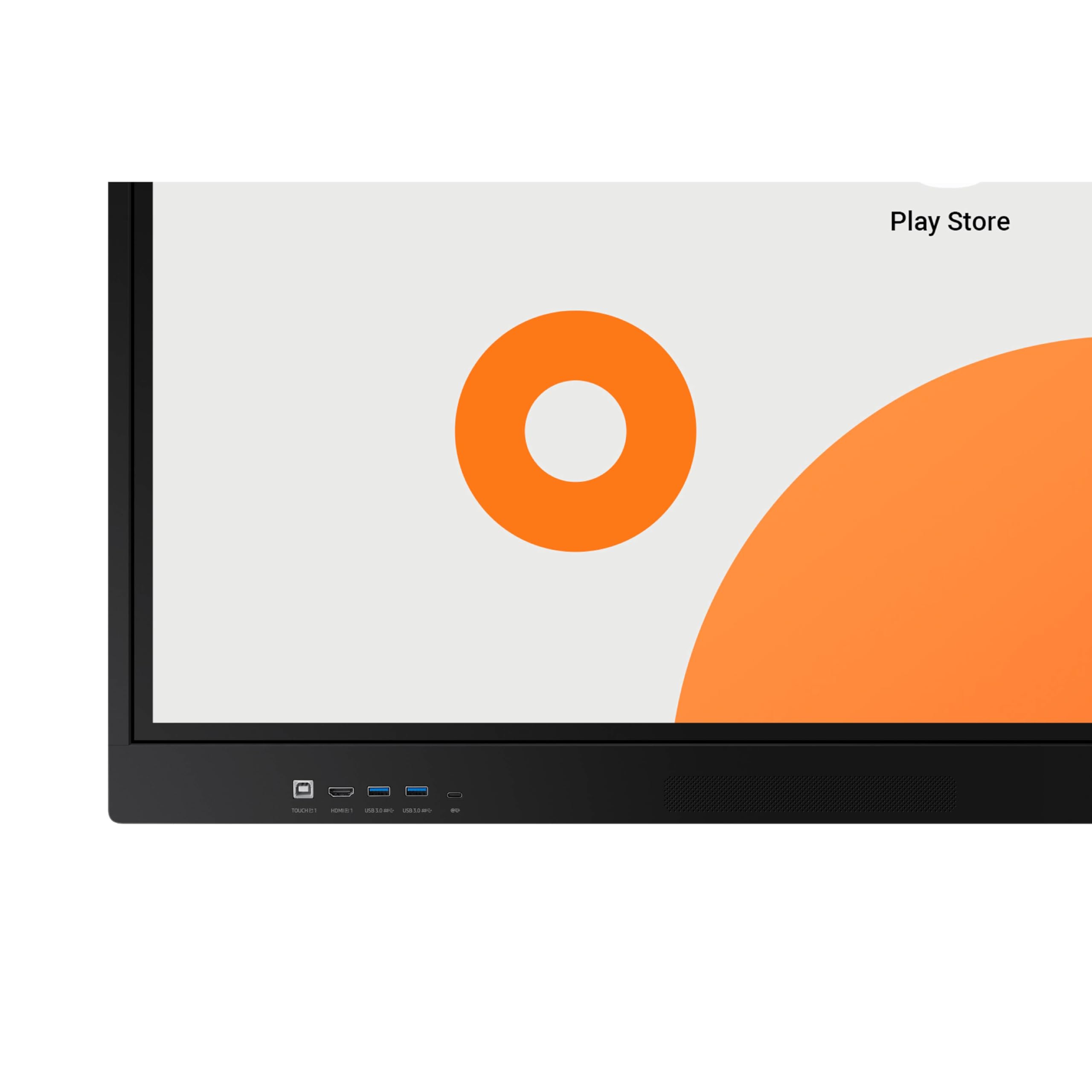

One USB-C cable for a laptop

The 3-in-1 USB-C port carries video, touch control and up to 65W of power over a single cable. A presenter plugs in once: their screen appears, the touchscreen drives their laptop, and the laptop charges while they present. For rooms that need full Windows, the OPS slot takes a Windows module that slides into the back.

Connections

• 2 x HDMI 2.1 in (HDCP 2.1)
• HDMI out
• 1 x USB-C (3-in-1, 65W)
• 4 x USB
• RJ45 LAN in
• RS232 in for AV control systems
• Stereo mini jack in and out
• Wi-Fi 5 (802.11ac) and Bluetooth
• 2 x 15W built-in speakers
• OPS slot (Windows module sold separately)

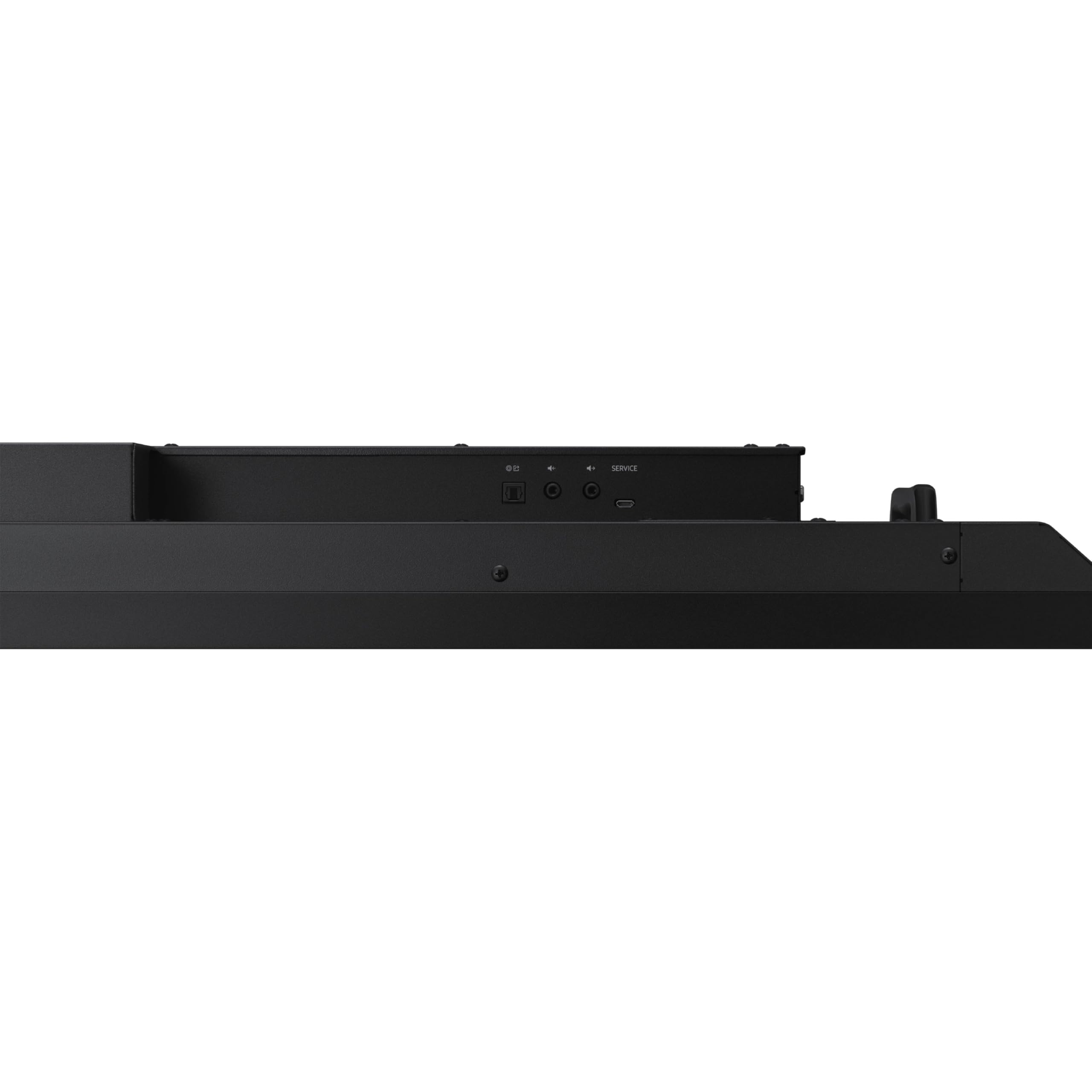

Front-facing physical controls give quick access to the functions people use most, without digging through a menu.

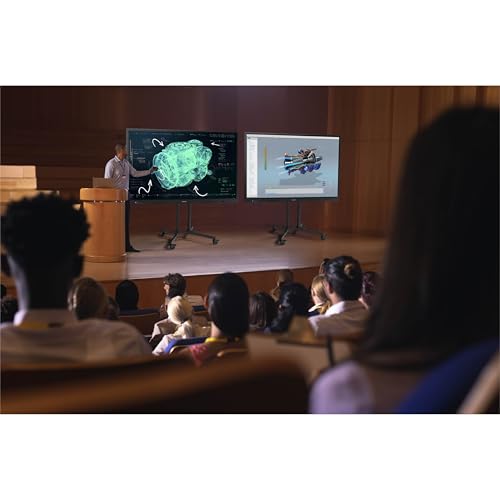

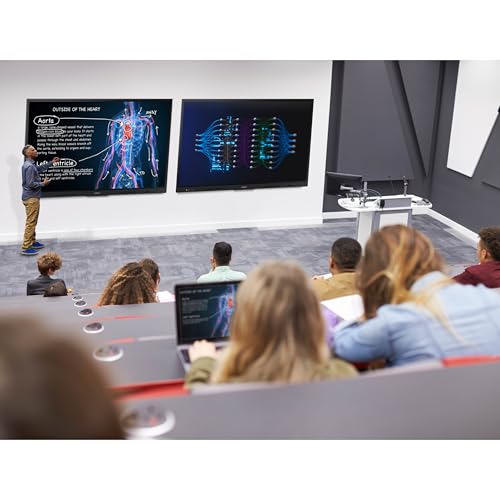

Built for schools and campuses

Advanced messaging pushes urgent communications to every whiteboard across classrooms, campuses and public spaces at once. Remote device management lets IT control whiteboard settings and applications without visiting each room. The WAF series also protects against electrical surges and is built to handle humid climates.

Mounting and installation

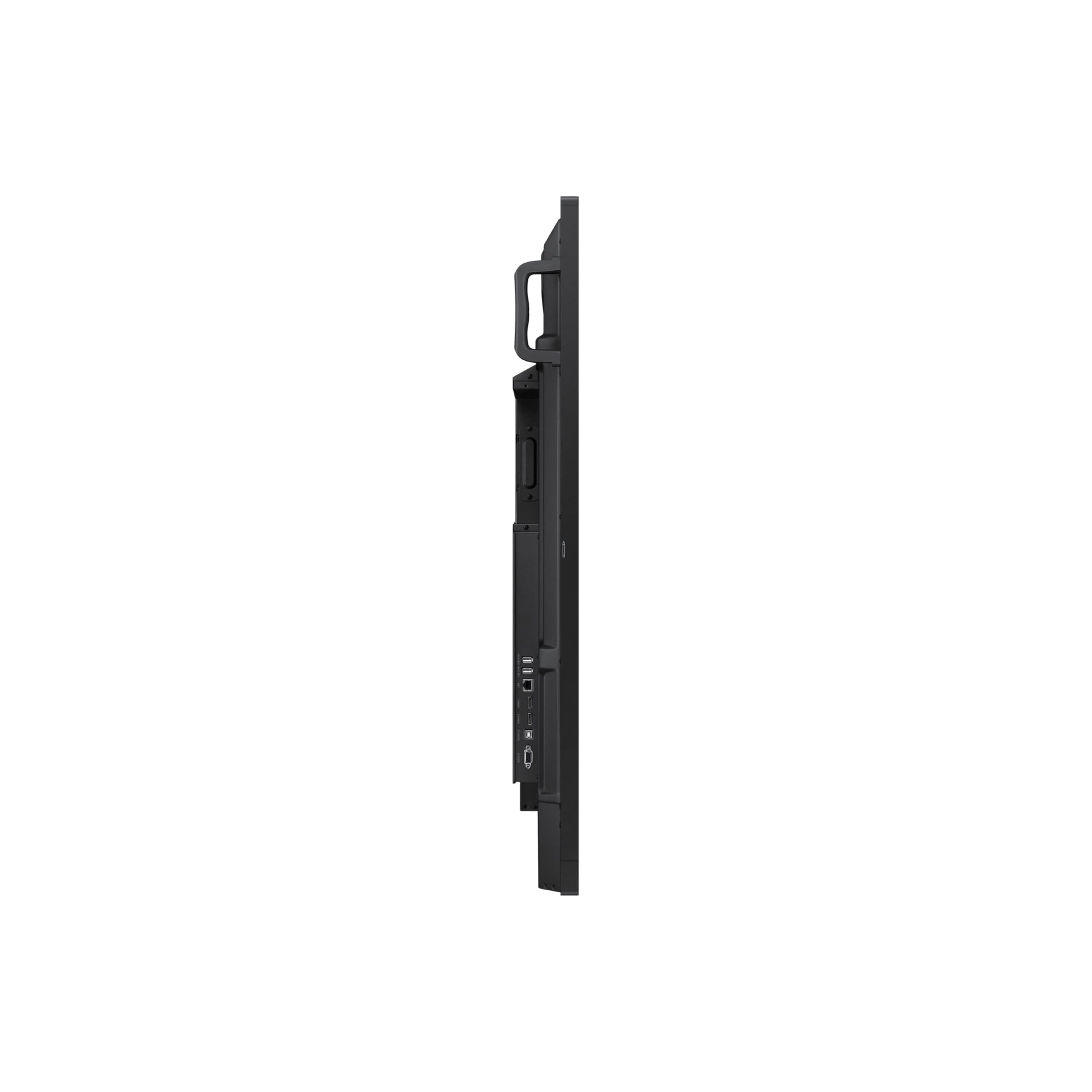

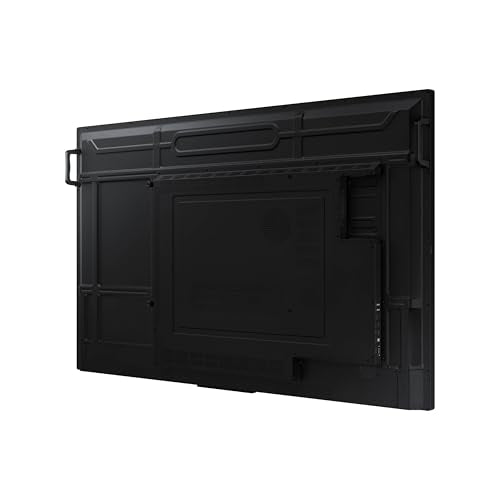

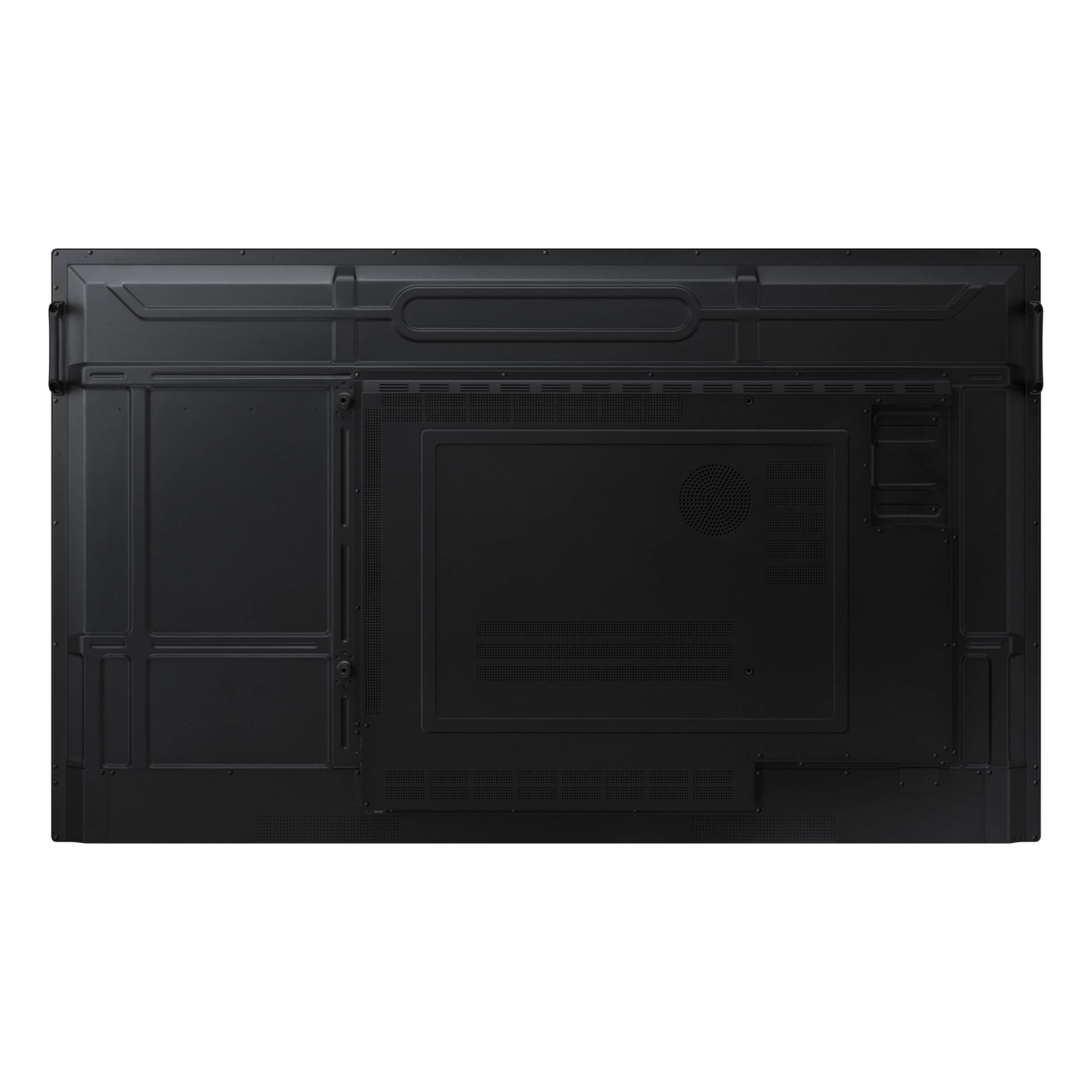

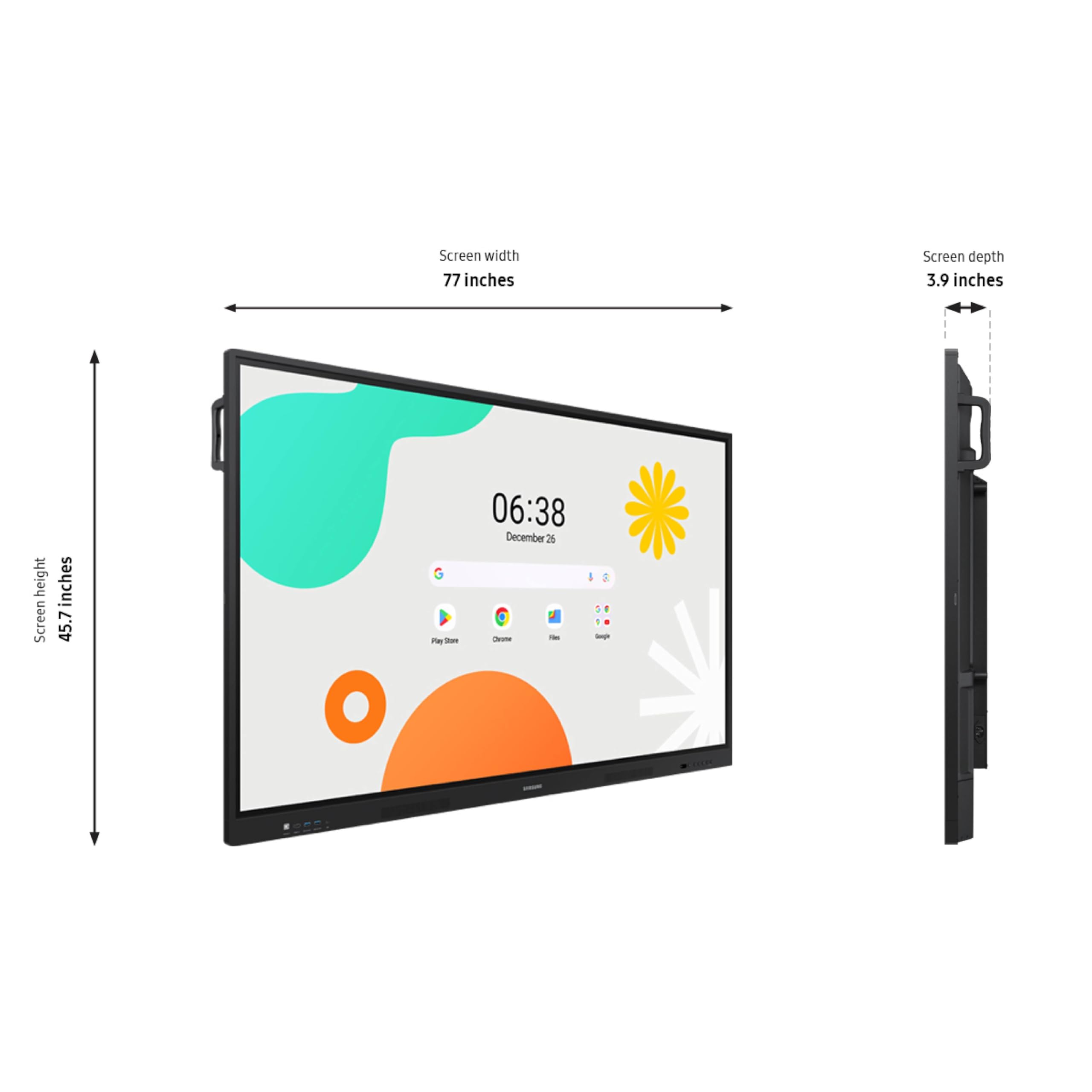

The display uses an 800 x 600 mm VESA pattern with a 17.2 mm black aluminium bezel. At 137.8 lb it needs a wall mount or mobile stand rated for that weight and a two-person installation. No stand is included. The carton is 82.5 x 49.8 x 7.3 inches and weighs 163.80 lb, so it ships by freight on a pallet and needs liftgate delivery with someone on site to receive it.

Frequently asked questions

Do I need a computer connected to use it?
No. Android 14 runs on the display and EDLA certification gives you the Play Store and Google Workspace built in. Connect a laptop only when you need Windows software or your own files.

How many people can write at once?
Up to 40 touch points at the same time, with Split Note Mode giving four independent note zones on one page.

Is a stand included?
No. Samsung does not include a stand with this model. You need a wall mount or mobile stand rated for at least 140 lb, with an 800 x 600 mm VESA pattern.

Can it run Windows?
Yes, with an OPS module. The slot is built in, the module is bought separately.

How many devices can share to it wirelessly?
Up to nine.

Does it support HDR?
No. This is a collaboration display, not a video wall.

How does it ship?
On a pallet by freight with liftgate service. The carton weighs 163.80 lb and someone must be on site to receive it.
