LG 86" CreateBoard Interactive Display 86TR3DQ-B, Replaces 86TR3DK-B

The LG 86" CreateBoard (86TR3DQ-B) is a 4K UHD interactive display for classrooms, meeting rooms and training spaces. It combines a 50-point touchscreen, Android 14 with Google EDLA certification and 8 built-in microphones, so teams can write, share and present from one screen.

86 inch 4K UHD touchscreen with 50-point touch

Up to 50 touch points let several people write and draw at the same time. The 3840 x 2160 IPS panel keeps text and diagrams sharp from the back of the room.

• 4K UHD IPS panel, 400 nits, 1200:1 contrast
• 178 degree viewing angles, so every seat sees the same picture
• 25% haze anti-glare surface for bright rooms
• Auto brightness sensor that adjusts to the room

Android 14 with Google EDLA certification

EDLA certification means Google Mobile Services are supported on the display, with 64GB of internal storage for apps and files.

• CreateBoard Share for wireless screen sharing, including from a web browser
• Multi-screen picture-in-picture and up to 4 sources side by side
• 8 built-in microphones and built-in speakers for hybrid lessons and calls

Connects to every device in the room

• Inputs: 3x HDMI, DisplayPort, VGA, 2x USB-C, 5x USB 3.0, 1x USB 2.0, audio, RS-232C, LAN
• Outputs: HDMI out, audio out, 3x touch USB, LAN
• Wi-Fi (slot module) and Bluetooth

Built for IT teams to manage

• Crestron Connected for room control systems
• RS-232C and Wake on LAN for remote power and control
• Setting data cloning to set up many displays the same way
• Lock mode and security mode to stop unwanted changes

Who this interactive display is for

• K-12 schools and colleges replacing whiteboards and projectors
• Meeting rooms running hybrid calls and shared notes
• Public sector buyers, made in Mexico and TAA compliant

Frequently asked questions

Does the LG 86TR3DQ-B replace the 86TR3DK-B?

Yes. LG's 86TR3DQ-B is the replacement model, with Android 14 and 50-point touch.

Is it TAA compliant?

Yes. It is made in Mexico and listed as TAA compliant by our distributor.

Can it be wall mounted?

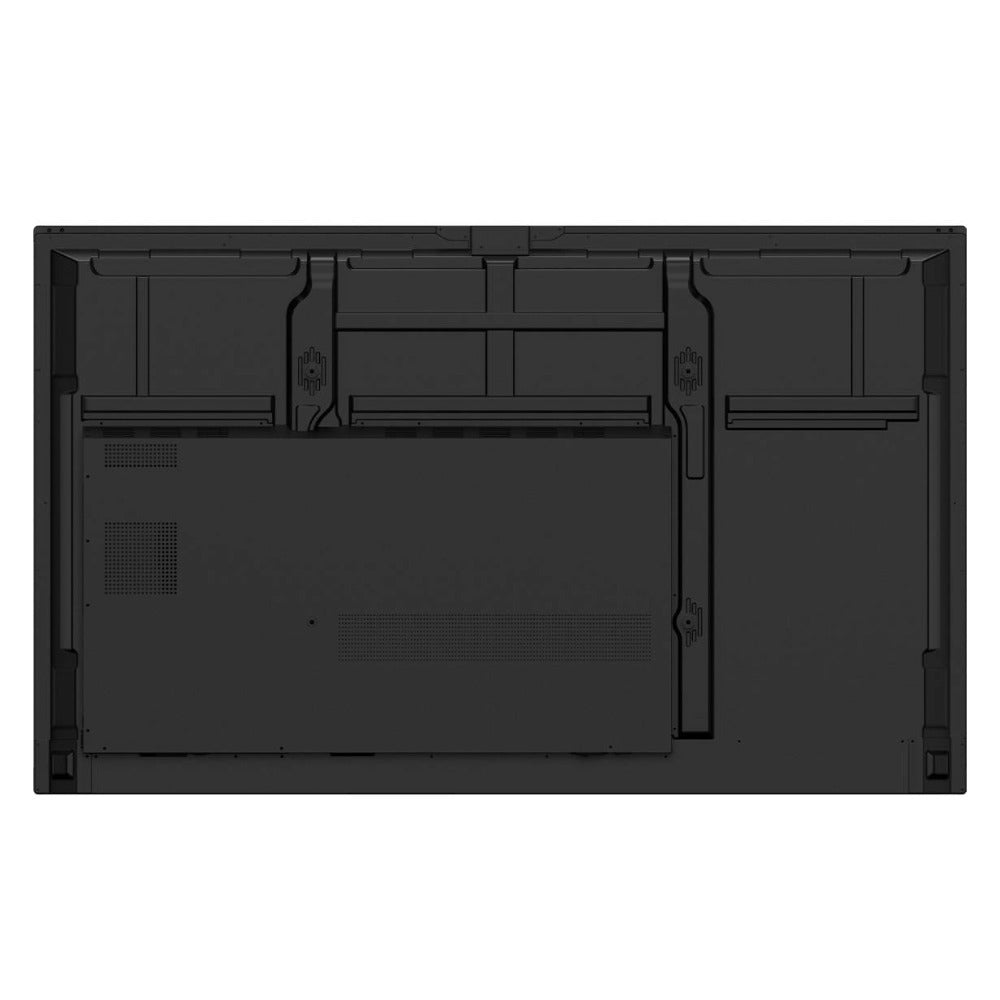

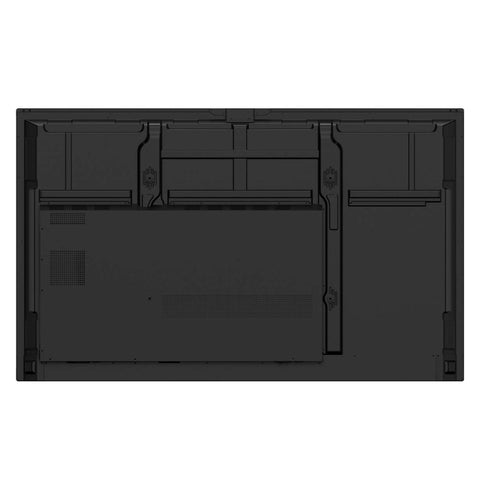

Yes. It uses an 800 x 600 mm VESA mount. Mount and stand are sold separately.

Does it have a built-in microphone?

Yes. It has 8 built-in microphones and built-in speakers.
